wheel |
product description |
hardness |
bearings |
$$ |
temp |
 |

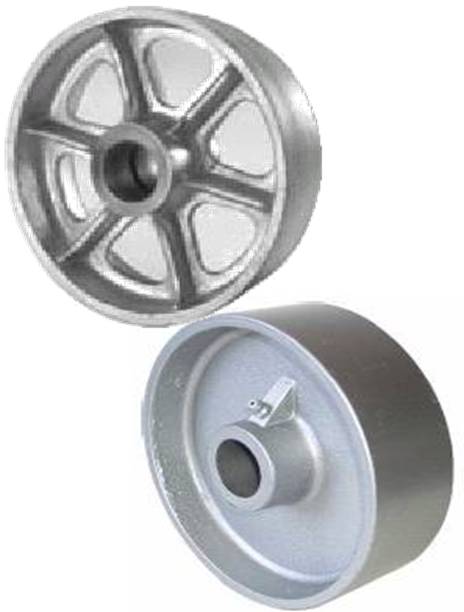

Cast Iron or Semi-Steel: These cast iron wheels are
constructed of premium gray iron for maximum load capacity and
impact strength. The wheels feature heavy cross section castings for
heavy duty use, abrasion resistance and a long service life. They
are resistant to abrasions and require minimal effort to start-up and
push loads.
Built for high capacity applications, the
cast iron wheels can withstand extreme heat. Precision tapered bearings
are available to complement the characteristics of the wheels. |
130-150 Brinelle |
Roller; Precision Ball;
Delrin, plain |
$ |
-40° to 800°
with proper bearings and lubrication |
 |
Extreme Duty
Polyurethane on Steel: The combination of this high-load
urethane chemically fused to a steel core makes this wheel one of the
most long lasting, rugged wheels available. It resists heat build-up and
is excellent for applications where heavy loads and continuous usage
cause regular poly wheels to degrade.
It provides floor protection, is
non-marking and delivers a quieter ride than a hard tread or steel
wheel. |
60 D |
Tapered |
$$$ |
-40° to 180° |
 |
Flanged: Single and
double: The flanged wheel is
designed to operate on steel tracking to minimize guidance and rolling
effort. These wheels are constructed of premium cast iron and steel for
high strength and long wear. |
|
Roller, tapered roller |
$$ |
Maximum to 800° with proper
bearings and lubrication |
|
|

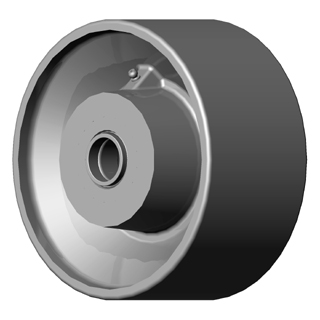

Forged steel wheels are
hot forged from high carbon steel billets heated to 2,400 degrees then
repeatedly hit by high tonnage forging hammers. This process enhances
the grain structure and increases the ductility and tensile strength
(64000 psi) of the wheel. The wheels are then precision machined flat
with rounded edged to finished tolerances.
Forged steel wheels offer the greatest
load capacity, impact strength and rollability of all caster wheels. |
Off the
chart! |
Roller, tapered, plain, Teflon |
$$$ |
-40° to 800°
with proper bearings and lubrication |
 |
Hard Rubber:
One-piece molded construction, available in black or grey, these hard
rubber wheels have a higher load capacity than the soft rubber and will
not flatten while sitting under load. They provide an easy roller,
and easy start-up along with great durability. Also resistant to most
chemicals, oils, grease, solvents and cleaning agents. Not
non-marking! |
75 D |
Plain, ball, Delrin |
$ |
-40° to 180°
intermittent |
 |
High Temp Glass
Filled Nylon: Made from a blend of nylon and glass, these wheels
are specifically designed to withstand high temperatures. They are
very durable and resistance to oils, greases and cleaning agents. |
65 D |
Plain, roller, spanner |
$$ |
Up to 490°
continuous or 550° intermittent |
 |
High Temp Phenolic:
The wheels are made from macerated canvas mixed with phenolic resins,
then pressure molded and cooked. The result is a highly durable
wheel capable of taking shock loads, is floor-protective, non-marking
and non-conductive. |
75-85D |
Plain, Roller, spanner |
$$ |
-50° to 550° |
 |
Phenolic Wheels
are an industry standard performer. Economical, durable,
shock-load capable, non-marking, non-conductive and resistant to oils,
greases and liquids. |
75-85D |
Plain, roller, Delrin, Precision Ball |
$ |
-50° to 250° |
 |
Pneumatic:
These air-inflated rubber wheels are mounted on a two piece hub
assembly. Providing the ultimate in cushion and shock absorption,
they are well suited for moving fragile loads over a variety of floor
surfaces. |
N/A |
Ball, Precision, flanged roller,
straight roller |
$$ |
N/A |
 |
Polyolefin:
These wheels are a lightweight, economical, hard tread wheel that
withstands hard impacts and abusive conditions. They provide floor
protection, are non-marking and non-conductive. Resistant to
water, oils, grease, solvents and many chemicals. |
60-70D |
Plain, spanner, ball
bearing |
$ |
-45° to 180° |
 |
Polyurethane on
Aluminum wheels feature precision molded high quality
polyurethane chemically bonded to a smooth, polished aluminum core,
providing a versatile, strong and attractive wheel. With ball
bearings, these provide an easy start-up and are good for ergonomic
applications. Meets SF and UL sanitation standards, resistant to
water, oils, greases, cleaning agents and solvents. |
95A |
Plain, delrin, annular ball, precision
ball, roller |
$$ |
-40° to 180° |
 |
Polyurethane on
Polyolefin wheels are comprised of precision molded high quality
polyurethane mechanically locked to a durable polyolefin core, providing
a versatile, strong and attractive wheel. Different manufacturers
often assign their own brand name, such as Performa, Protech, PolyLoc or
Mirage. These popular wheels are available in various color
combinations and can look very attractive while providing easy
roll-ability, floor protection, non-marking and non-conductive
performance. |
95A |
Plain, ball bearing |
$ |
-40° to 180° |
 |
Polyurethane on Cast
Iron: A wide variety of liquid
cast polyurethane wheels are available. These wheels offer a longer
wearing, higher capacity material than rubber, yet will not damage or
mark
floors like cast iron or steel. Polyurethane wheels possess a durability
unmatched by any rubber tread wheel and are built to withstand permanent
flat spots in the tread. The polyurethane resists most chemicals
and oils and rejects floor debris. |
95 A |
Plain; Delrin; Roller; Precision Ball;
Tapered Ball |
$$ |
-40° to 180°
with proper bearings and lubrication |
 |
Rubber on Aluminum
wheels feature a cushion rubber tread chemically - and
permanently - bonded to a smooth, polished aluminum wheel core. They
provide light weight with good load capacity and shock absorption.
Particularly with annular bearings, they require minimal effort to
starup-up and push a load. The cushioned rubber allows for easy
roll-over of small obstacles such as electrical cords and door
thresholds. They offer floor protection, are non marking and
non-conductive, and resist liquids, oils, greases, cleaning agents and
solvents. |
65-75A |
Plain, annular ball, precision ball,
roller |
$ |
-40° to 180°
intermittent |
 |
Rubber Balloon on
Aluminum: Extra thick, precision molded high grade grey
rubber chemically bonded to an aluminum core provides extreme resiliency
and mobility. These attractive wheels deliver a quiet, cushion
ride on rough or uneven surfaces. The 'crowned' or 'donut' tread
offers swiveling ease with rollability. Offers superior floor
protection, is non-marking and non-conductive. |
60-70A |
Plain, ball bearing |
$$$ |
N/A |
 |
Rubber on Cast Iron: Our mold-on rubber wheels
consist of a soft black, 70 durometer (Shore A) rubber tread permanently bonded
on gray iron centers. Mold-on rubber wheels provide excellent
floor protection, a cushioned and quiet ride for the product being
transported, and they absorb shock and vibration.
Excellent for moist and wet environments,
food service equipment, small waste bins, factory use, platform trucks
and hotel equipment. |
60-80 A |
Plain, Roller, Precision Ball, Delrin |
$$ |
-40° to 180°
with proper bearings and lubrication |
 |
Soft Rubber wheels are a good choice for those applications
where the average load is light with occasional loads using the full
capacity of the wheel. Soft Rubber wheels are manufactured of quality
materials with a resilient rubber tread bonded to the hard rubber core.
These wheels are an economical choice for moving equipment.
Cons: Overloading can result in flat
spots making initial rollability more difficult. Do not use in
oil/ grease situations, where metal chips/ filings are present, or in
high temperature environments. |
70-80 A |
Plain bore; Ball |
$ |
Maximum to 180° F (intermittent) |
 |
Solid Polyurethane:
These caster wheels are molded from high performance
liquid cast polyurethane. They are easy to push with easy
start-up, are capable of withstanding shock loads and abusive
conditions. They are durable and resist abrasions, cracking and
chipping, and are floor protective and non marking. |
55-65D |
Plain, roller, precision ball, delrin |
$$ |
-40° to 180°
intermittent |
  |
Thermoplastic Rubber:
Precision molded Thermo Plastic Rubber is mechanically locked to a
durable polyolefin core to provide an economical wheel for many
applications. They provide a smooth, cushioned ride and can
overcome small debris and obstacles on the floor. They offer floor
protection, are non-marking and non-conductive. These often have
various brand names by various manufacturers and can be flat or crowned.
|
55-65 A |
Plain, delrin, spanner, roller, caged
roller |
$$ |
-40° to 180°
intermittent |
 |
V-Groove
wheels are constructed from grey iron castings. The 90° grooves,
machined into the face of the wheels, direct the load to each face of
the angle track. Can also be used on a flat surface. Ideal for
heavy loads. |
130-150
Brinell |
|
$$ |
-40° to 800°
with proper bearings and lubrication |
