3000 Series	3000 Series	3300 Series
	• Capacity to 120 lbs. • Double ball raceway. • Variety of fastenings • Integrated top-lock brakes provide a sure lock. • L21 stem fastener for rolling ladders (old 3100 series). • Applications: Mobile medical equipment, light weight institutional & food service equipment, office equipment, chairs, displays, stands, automobile creepers, mop buckets, rolling ladders, etc.	• Available in single or double wheel style • Capacity up to 260 lbs. • Case hardened double ball raceways provide extra capacity & durability • Sealed raceway is standard with top plate fastener type. • High capacities with low overall heights. • Bright zinc finish standard. • Applications: Business machines, copiers, printers, diagnostic equipment, computer main frame tower carts and stands, vending machines, magazine racks, store check-out racks, displays, video games, pianos, etc.

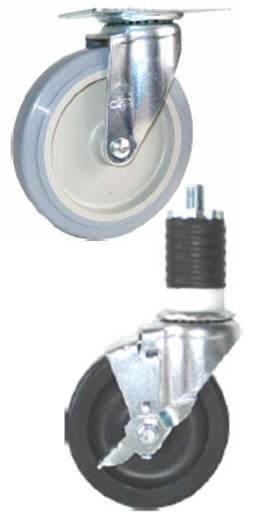

3000 Series	3400 Series	3600 Series
	• Capacity to 220 lbs. • Case hardened double ball raceways provide extra capacity & durability • Unique, 1-3/4" wide x 3" long (-01–) Top plate fastener, was developed to be able to be attached to a 2" square tube without protruding past the ends of the tube. • Applications: Food service & institutional equipment, light-duty service carts (for hotels, resorts, hospitals, and restaurants), & light duty stock carts, displays, etc.	• Capacity to 230 lbs. • Available with over half a dozen fastener options. • Double ball raceway. • Applications: Bakery racks, laundry carts, light duty stock carts, food service equipment, service carts (for hotels, resorts, hospitals, and restaurants), garment racks, Z trucks, etc.

3000 Series	3800 Series	4000 Series
	Economy Series. Designed as a cost effective alternative to the 5000 & 5200 series. • Capacity up to 250 lbs. • Case hardened double ball raceways. • Large variety of fasteners for various applications. • Applications: Light-duty material handling equipment, food service carts & equipment, bakery racks & equipment, institutional carts & equipment, miscellaneous dollies, mobile cases, displays, mobile wire racking, stock carts, textile applications, warehouse & manufacturing applications, etc.	• Capacity to 300 lbs. • Most economical casters for unlimitled, light-duty applications. • Large single-ball raceways deeply embossed for strength and, durability. • Integrated top lock brakes provide a sure lock without interfering with the roll-ability of the wheel when disengaged, unlike side-lock style brakes. • Applications: Displays, dollies, platforms, racks, rolling tool boxes, food service, etc. • Economy revision available in the 3".

3000 Series	4900 Series
	• Capacity to 250 lbs. • 3/8" axle and nut used instead of rivet. (5/16 axle available upon request) • Zinc plated. • Sealed upper raceway helps keep out dirt and dust. • Case hardened double ball raceways provide extra capacity & durability. • Applications: Shopping carts, miscellaneous carts and racks, food service & institutional equipment, etc.	Return to top

Caster Warehouse Light/ Medium Duty Casters

3000 Series	5000 Series		Stainless 5000 Series
	• Capacity up to 350 lbs. • Yoke is stamped and drawn from heavily embossed steel. • Case hardened double ball raceways provide extra capacity & durability • 1/2" king pin is hydraulically upset to increase shock absorbing capacity. • Large variety of fasteners for various applications. • Very durable, economical caster for hundreds of applications • Applications: Light-medium duty material handling equipment, food service carts & equipment, bakery racks & equipment, institutional carts & equipment, miscellaneous dollies, mobile cases, displays, mobile wire racking, stock carts, textile applications, warehouse & manufacturing applications, etc.		• Economy Stainless Series: Without seals, grease or zerk fittings. Great for high temperature & economy applications. • 304 STAINLESS STEEL (All metal parts are made of Stainless Steel). • Highly resistant to conditions that would normally corrode and rust regular steel casters. • Double ball raceways provide extra capacity & durability • Applications: Ideal for wet, damp conditions or other corrosive environments such as wash downs, restaurants, food processing plants, hospitals & other institutional applications, etc.

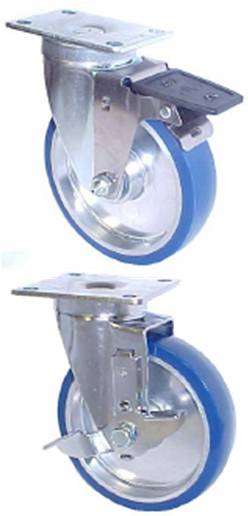

3000 Series	5200 Series		Stainless 5200 Series
	• Capacity up to 350 lbs. • Case hardened double ball raceways provide extra capacity & durability • Smooth staking of king pin. • Metal dust cover helps protect swivel raceway. • Integrated top lock brakes available on both swivel & rigid casters. • Applications: Light-medium material handling equipment, food service carts & equipment, bakery racks & equipment, institutional carts & equipment, miscellaneous dollies, mobile cases, displays, mobile wire racking, stock carts, textile applications, warehouse & manufacturing applications, etc.		• 304 Stainless Steel: Highly polished finish provides attractive appearance • Highly resistant to conditions that would normally corrode and rust regular steel casters. • Dust cover raceway standard with zerk grease fitting. • Seals in both the upper and lower raceways standard. (Not designed for high-temp applications). Please inquire for alternatives for high-temp applications or use S5000 series (WC S5000 series does not have seals or grease in the raceways). • Double ball raceways provide extra capacity & durability • Applications: Ideal for wet, damp conditions or other corrosive environments such as wash downs, restaurants, food processing plants, hospitals & other institutional applications, etc.

3000 Series	5400 Series		5500 Series
	• Standard integral total lock brake, locks both the wheel and the swivel raceway from turning. Brake activates by stepping on the trailing foot pedal, and deactivates by stepping on the top of the lever. • Capacity up to 350 lbs. • Chrome plated finish provides excellent protection and looks great. • Full thread guards provide protection for the bearings. • Case hardened double ball raceways provide extra capacity & durability • Applications: Light-medium material handling equipment, food service carts & equipment, bakery racks & equipment, institutional carts & equipment, miscellaneous dollies, mobile cases, displays, mobile wire racking, stock carts, textile applications, warehouse & manufacturing applications, etc.		• Capacity up to 400 lbs. • Case hardened double ball raceways provide extra capacity & durability • Smooth staking of king pin. • Metal dust cover helps protect swivel raceway. • Integrated top lock brakes available on both swivel & rigid casters. • Applications: Light-medium material handling equipment, food service carts & equipment, bakery racks & equipment, institutional carts & equipment, miscellaneous dollies, mobile cases, displays, mobile wire racking, stock carts, textile applications, warehouse & manufacturing applications, etc.

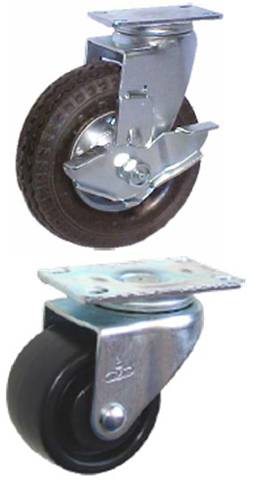

3000 Series	5600 Series	3000 Series	5700 Series
	• Capacity up to 500 lbs. • Yoke is cut and stamped from heavily embossed steel. • Case hardened double ball raceways provide extra capacity & durability • 1/2" king pin is hydraulically upset to increase shock absorbing capacity. • Applications: Light-medium duty material handling equipment, food service carts & equipment, bakery racks & equipment, institutional carts & equipment, miscellaneous dollies, mobile cases, displays, mobile wire racking, stock carts, textile applications, warehouse & manufacturing applications, air cargo decks, ground support equipment, conveyors, etc.		• Economy total–lock series. • Built-in total-lock one-step brake system locks down both the swivel and the wheel simultaneously. • Case hardened double ball raceways provide extra capacity & durability • Thermal plastic rubber and polyurethane on polyolefin wheels do not mark floors, and come with a single precision ball bearing with integrated spanner bushing & thread guard. Rolls exceptionally well. • Applications: Movie and soundstage equipment, hospital/medical equipment, computer equipment stands and mobile workstations , electronics and hi-technology equipment and carts, diognostic equipment, etc.
		Return to top

6400 Series		6600 Series
• Case hardened double ball raceways provide extra capacity & durability • Top plate and legs are made out of 1/4" cold forged steel. • Corrosion-resistant zinc plated finish. • 5/8" nut and bolt kingpin. • Zerk grease fittings in axle, swivel bearings and most wheels. • 2" fork spacing. • Integrated top lock brakes available on both swivel & rigid casters. • Applications: Miscellaneous carts, platform trucks, wire shelving units, heavy appliances, general duty material handling, warehouse & factory applications, heavy foodservice & institutional equipment, textile applications, etc.		• Case hardened double ball raceways provide extra capacity & durability. • Top plate and legs are made out of 1/4" cold forged steel. • Corrosion-resistant zinc plated finish. • 5/8" nut and bolt kingpin, 2-1/2" fork spacing. • 1/2" zerk axle & lock nut on caster sizes 3-1/4" to 8" , 5/8" axle on 3" casters. Zerk fittings also in swivel bearings & most wheels. • Applications: Miscellaneous carts, platform trucks, wire shelving units, heavy appliances, general duty material handling, vending machines, warehouse & factory applications, heavy foodservice & institutional equipment, textile applications, tool boxes, etc.

Stainless 6600 Series		6800 Series
• Polished 304 STAINLESS STEEL provides an attractive appearance. • Highly resistant to conditions that would normally corrode and rust regular steel casters. • Seals in both the upper and lower raceways standard. Seals must be removed for high-temp applications over 160 degrees Fahrenheit)! • Double ball raceways provide extra capacity & durability • 5/8" nut and bolt kingpin. • Applications: Ideal for wet, damp conditions or other corrosive environments such as wash downs, restaurants, food processing plants, hospitals & other institutional applications, etc.		• Case hardened double ball raceways provide extra capacity & durability • Top plate and legs are made out of 1/4" cold forged steel. Machine-welded legs for uniform consistency and strength. • Corrosion-resistant zinc plated finish. • 3/4" Nut and bolt kingpin, 2-1/2" & new 3" fork spacings. • Zerk grease fittings in axle, swivel bearings and most wheels. • New optional fork spacing enables us to provide a more economical 2-1/2" face wheel caster. • Applications: Platform trucks, freight terminal trucks, cargo containers, drying racks, ground support equipment, mobile military equipment, A frames, etc.

6900 Series		7000 Series
• Economy Cold Forged Series provides the mobility advantage of the larger diameter wheels at a very competitive price. • 23/64" thick double-welded legs provide superior strength against side impact and abuse, extending the life of the casters. • 3/4" nut-and-bolt king pin & axle. • Case hardened double ball raceways provide extra capacity & durability • 1/4" thick top plate. • 3" fork spacing. • Applications: Large platform trucks, freight terminal trucks, cargo containers, and drying racks.		• Economy Cold Forged Series provides the mobility advantage of the larger diameter wheels at a very competitive price. • 23/64" thick double-welded legs provide superior strength against side impact and abuse, extending the life of the casters. • 1" Grade 5 nut-and-bolt king pin & 3/4" axle. • 23/64" thick top plate. • Fully hardened double ball raceways provide extra capacity & durability • 3-3/4" fork spacing. • Applications: Large platform trucks & buggies, freight terminal trucks, cargo containers, drying racks, heavy mobile machinery & equipment, heavy-duty material handling carts, heavy duty warehouse and manufacturing plant applications, etc.

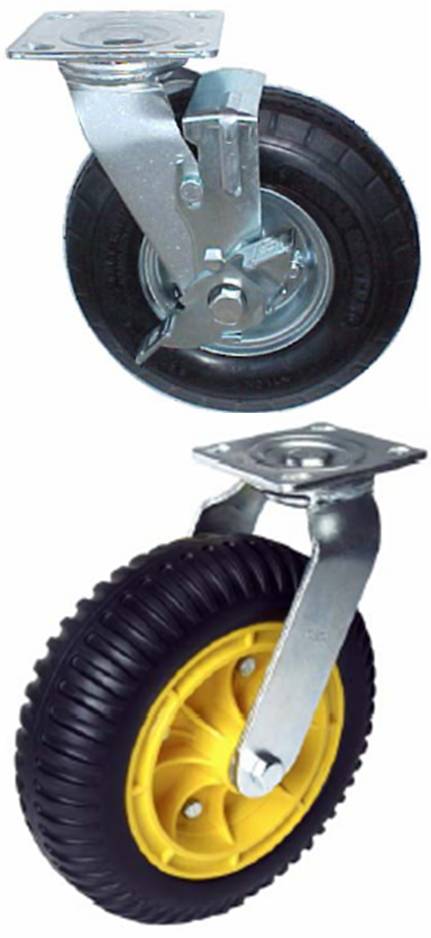

7600 Series		9000 Series
• For use in non-motorized applications only. • Case hardened double ball raceways provide extra capacity & durability • Zinc plated finish. • Top plate & legs made from 1/4" steel. • 2 piece bolt-together hub, inflatable tube in 4-PLY tire construction. • Pneumatics tires available in both black & non-marking gray. • New "Centipede" wheel is made out of microcellular Polyurethane foam. It provides a lightweight, cushioned ride without worry, maintenance or a flat tire. The hub assembly is a durable 2 piece nylon construction. These wheels perform best with precision ball bearings. • Application: Carts, platform trucks for industrial, commercial and institutional environments demanding a cushioned ride. Carrying sensitive materials, chemicals, electronics, ceramics, glass, sound & lighting equipment. Great for the outdoors. (cement, dirt, gravel, grass, etc.)		One piece drop forged steel 1/4" top plate and inner raceway precision machined and hardened with 3/8 single ball bearing kingpinless style construction. • Eliminates problems associated with kingpin failure. • Legs are formed from 1/4" forged steel. • 1/2 diameter axle bolt with lock nut. Zerk grease fitting in axle & raceway. • Applications: Great for applications involving extreme shock loading, towing, moving over cracks, uneven floors, and tarmacs, heavy mobile machinery & equipment, heavy-duty material handling carts, buggies & platform trucks, ground support equipment, heavy duty warehouse and manufacturing plant applications, etc.

9100 Series		9200 Series
• Single ball bearing, precision machined, hardened & heat treated, "Kingpinless style sealed raceway." (3.26" diameter raceway with 1/2" ball bearings.) • Eliminates problems associated with kingpin failure. • Legs are formed from 1/4" forged steel and are double welded for strength. • Corrosion-resistant zinc plated finish. • 1/2" diameter axle bolt with lock nut. Zerk grease fitting in axle & raceway. • Applications: Great for applications involving extreme shock loading, towing, moving over cracks, uneven floors, and tarmacs, heavy mobile machinery & equipment, heavy-duty material handling carts, buggies & platform trucks, ground support equipment, heavy duty warehouse and manufacturing plant applications, etc.		• Single ball bearing, precision machined, hardened & heat treated, "Kingpinless style sealed raceway." (3.26" diameter raceway with 1/2" ball bearings.) • Eliminates problems associated with kingpin failure. • Legs are formed from 23/64" forged steel and are double-welded for strength. • Corrosion-resistant zinc plated finish. • Zerk fittings in swivel raceway, axle and most wheels. • 3/4" diameter axle bolt with lock nut. Zerk grease fitting in axle & raceway. • Applications: Great for applications involving extreme shock loading, towing, moving over cracks, uneven floors, and tarmacs, heavy mobile machinery & equipment, heavy-duty material handling carts, buggies & platform trucks, ground support equipment, heavy duty warehouse and manufacturing plant applications, etc.

9400 Series		9500 Series
• Single ball bearing, precision machined, hardened & heat treated, "Kingpinless style sealed raceway." (3.43" diameter raceway with 1/2" ball bearings.) • Top plate and yoke assembly : AISI 1045 drop forged steel. Legs are formed from 23/64" forged steel and are double welded for strength. • Eliminates problems associated with kingpin failure. • Corrosion-resistant zinc plated finish. • 3/4" diameter axle bolt with lock nut. Zerk grease fitting in axle & raceway • Applications: Great for applications involving extreme shock loading, towing, moving over cracks, uneven floors, and tarmacs, heavy mobile machinery & equipment, Extra heavy-duty material handling carts, buggies & platform trucks, ground support equipment, Extra heavy-duty warehouse and manufacturing plant applications, A frames, etc.		• Single ball bearing, precision machined, hardened & heat treated, "Kingpinless style sealed raceway." (3.43" diameter raceway with 1/2" ball bearings.) • Top plate and yoke assembly : AISI 1045 drop forged steel. Legs are formed from 23/64" forged steel and are double welded for strength. • Eliminates problems associated with kingpin failure. • Corrosion-resistant zinc plated finish. • 3/4" diameter axle bolt with lock nut. Zerk grease fitting in axle & raceway • Applications: Great for applications involving extreme shock loading, towing, moving over cracks, uneven floors, and tarmacs, heavy mobile machinery & equipment, Extra heavy-duty material handling carts, buggies & platform trucks, ground support equipment, Extra heavy-duty warehouse and manufacturing plant applications, A frames, etc.
