shepherd caster

Shepherd Caster Light Duty Casters

	*Regent Series*		*Monarch*
	Features: • Zinc finish • Double ball bearing raceways • Heat Treated • Meets or exceeds ANSI/BIFMA and ICM standards for the caster industry • NSF approved less thread guards Applications: Fixtures, carts, institutional equipment, medical equipment and furniture Options: Brakes: Friction Brake, Tread Lock Brake. Finishes: Zinc is standard with Polished Nickel, Bright Chrome, Copper Oxide and Black Oxide also available. Nut/bolt Axle: Riveted axle is standard, but nut and bolt axle is available. To order, add [NB] to end of part number. Also available in a Rigid (top plate) style. Threaded Stem Washer Wrench: Holds caster in place while assembling to unit. Connectors: Available with • Threaded Stems, • Grip Ring Stems (shown at left) • Grip Neck Stems, • Expanding Adapters • Top Plates		Features: • Zinc finish • Double ball bearing raceways • Octagon washer on threaded stem for easy installation • Heat Treated • Meets or exceeds ANSI/BIFMA and ICM standards for the caster industry • Swivel only Applications: Fixtures, institutional equipment, medical equipment, equipment carts and furniture Options: Brakes: Friction Brake on 2" and 2-1/2" models. Finishes: Zinc is standard with Polished Nickel also available (with minimum order quantities). Nut/bolt Axle: Riveted axle is standard, but nut and bolt axle is available. To order, add [NB] to end of part number. Available in swivel only. Connectors: Available with: • Threaded Stems • Grip Neck Stems • Grip Ring Stems (shown at left) • Top Plates

	*Omega*		Baron Spherical
	Features: • Fully heat treated • Dual ball bearing raceways • High luster chrome finish • Matching chrome thread guards • Precision ball bearings for excellent rollability • Choice of new vipor wheel (85-90A) or soft neoprene rubber (50-60A) durometer • Swivel only Applications: • Medical Equipment • Electronic Equipment • Seating Options: Brakes: Tread brake uniformly integrated into body design for smooth look and ease of activation (available on 3" neoprene model only). Connectors: Available with • Hollow Kingpins • Grip Neck Stems • Grip Ring Stems • Round Stems • Top Plates		Features: • Double ball bearing raceways • Octagon washer on threaded stem for easy installation • 2" model is heat treated • 2"model meets or exceeds ANSI/BIFMA and ICM standards for the caster industry • Swivel only Applications: • Furniture • Fixtures • Medical Equipment • Office Equipment Finishes: Bright Chrome [BC], Metalized Brass [MB] and Windsor Antique [WA]. Connectors: Available with: • Threaded Stems • Grip Neck Stems • Grip Ring Stems • Top Plates

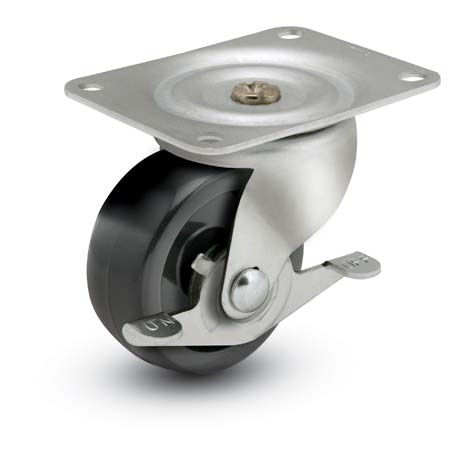

	*General Duty*
	Features: • Zinc finish • Single race • Nut and bolt axle • Nickel plated kingpin for smooth swivel • Economical Applications: • Material Handling • Institutional Equipment • Industrial Equipment • Furniture Options: Brake option available on swivel models only. Connectors: Available with Top Plates		Return to top

Shepherd Caster Medium Duty Casters

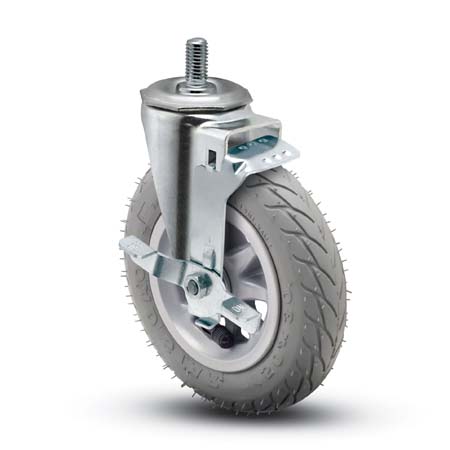

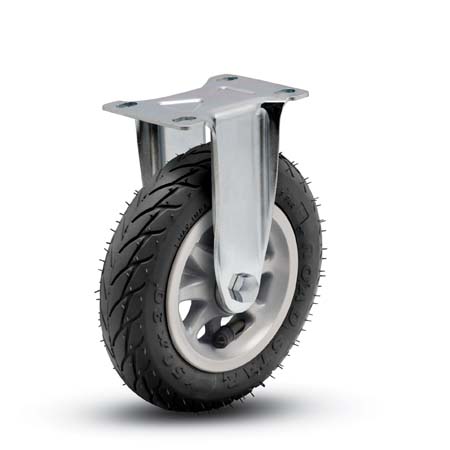

	*Institutional*		Institutional Pneumatic
	Features: • Constructed of high strength steel for added durability • NSF approved (less thread guards) • Dual ball bearing raceway • Zinc plated finish • 3⁄8" diameter nut and bolt axle • Plastic thread guards standard on 4" and 5" wheels with ball bearings Applications: • Hospital Equipment • Utility Carts • Store Fixtures • Institutional Equipment • Office Equipment • Food Service Options: Brakes: Tread Lock, Top Lock, Total Lock (locks wheel and swivel), and Direction Lock (locks swivel only). Threaded Stem Washer Wrench: Holds caster in place while assembling to unit. Connectors: Available with • Hollow Kingpins • Threaded Stem • Grip Ring stems • Expanding Adapter stems • Top Plates (shown)		Features: • Pneumatic wheels absorb shock for a smoother ride • Reduces vibration to protect sensitive equipment and cargo • Rolls over floor cracks, obstacles and uneven surfaces with ease • Easy access inflation valve stem • Rigid available with top plate connector Applications: • Equipment • Utility Carts • Store Fixtures • Institutional Equipment • Electronics Equipment • Office Equipment • Food Service Options: Brakes: Tread Lock Threaded Stem Washer Wrench: Holds caster in place while assembling to unit. Connectors: Available with • Threaded Stem • Grip Ring stems • Top Plates

	Institutional Z-Series
	Features: • Strong durable glass filled nylon body • Sleek stylish design • Sealed precision wheel bearings • Pin-less Total Lock and Direction Lock brake design Applications: • Medical Equipment • Foodservice Equipment • Store Fixtures • Utility Carts Options: • Brakes: • • Total Lock: locks wheel and swivel (all models). • • Direction lock: locks just swivel (swivel plate models only). • Stainless Steel Components Connectors: Available with • Threaded Stem (shown) • Grip Ring stems • Top Plates (shown)		Return to top

Shepherd Caster Medium/ Heavy Duty Casters

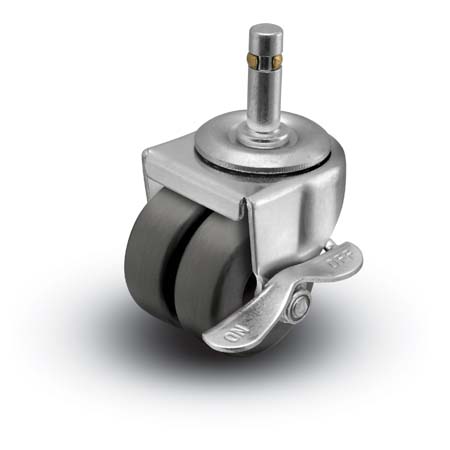

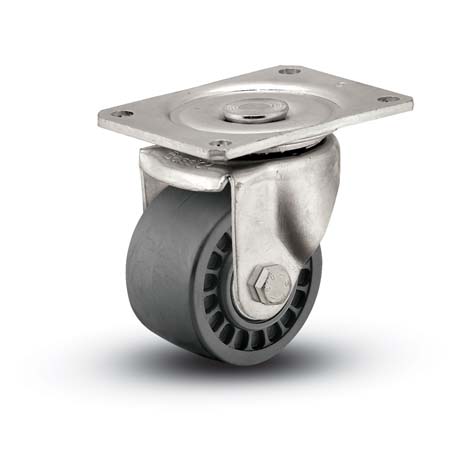

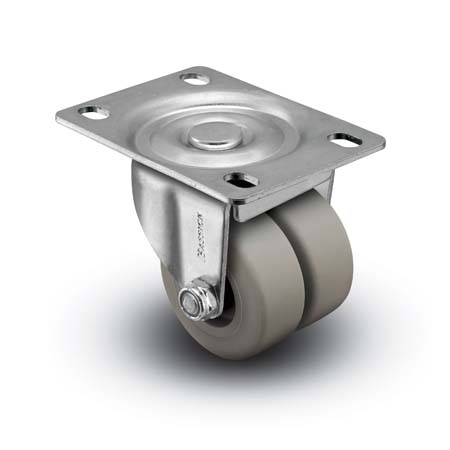

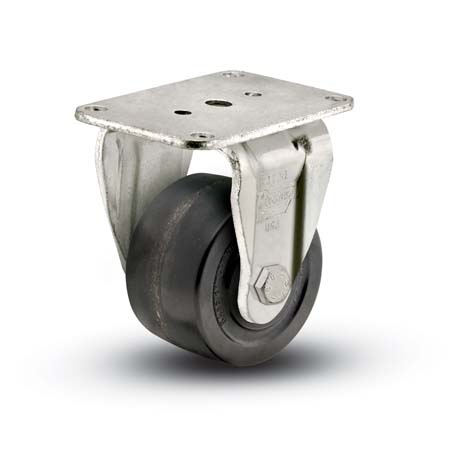

	*Business Machine 00 Series*		*Business Machine S68/S99 Series*
	Features: • Dual ball bearing raceway construction • High load capacity • Sleek, low profile design Applications: • Electronic Equipment • Business Machines • Store Fixtures • Laboratory Equipment Options: • Brakes: Side Lock Brake Connectors: Available with • Threaded Stem • Grip Ring stems (shown) • Top Plates (shown)		Features: • High load capacity • Low profile design • Precision bearing in glass-filled wheel models • 7/16" Nut/Bolt Axle Applications: • Copiers • Vending Machines • Business Machines • Computer Storage Devices Options: • Brakes: Thumb screw brake. Sure-Lok brake available for glass filled nylon swivel models only. Connectors: Available with • Top Plates

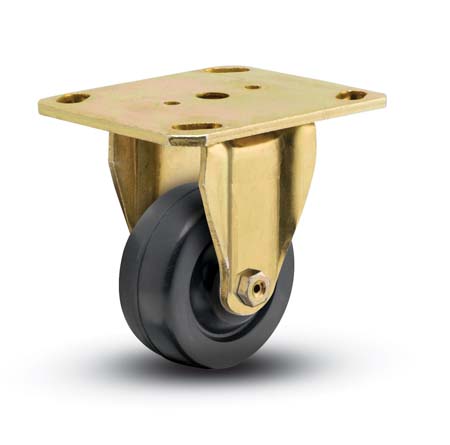

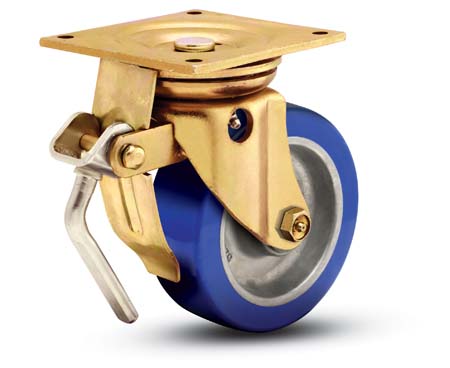

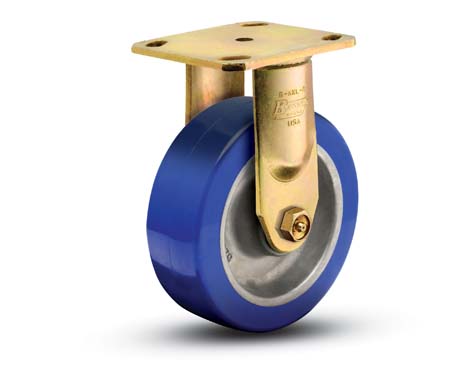

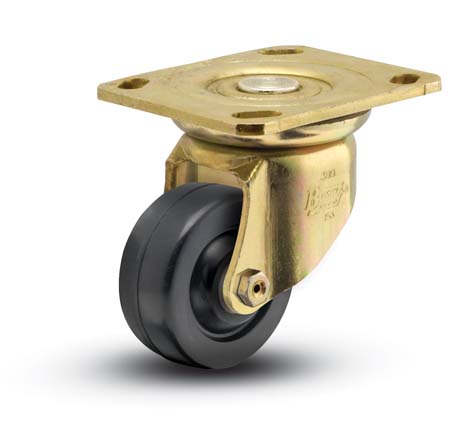

	*Bassick XX/YY Series*		*Bassick AS/AR Series*

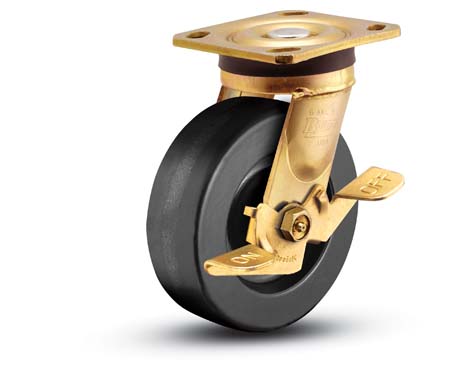

	Features: Low overall height combined with heavy load requirements • Double ball bearing raceways • Heavy, staked kingpin • Yellow dichromate finish for added corrosion resistance • Weight Capacity up to 900 lbs. Applications: • Electronic Equipment • Material Handling Connectors: Available with • Top Plates		Features: • Welded steel construction • Drawn and formed ballcup • Full double ball heat treated raceways • Sealed upper and lower raceways • Embossed, formed legs for added strength • Yellow dichromate finish for added corrosion resistance Applications: • Platform Trucks • Warehouse Trucks • Material Handling Containers Options: • Brakes: Total Lock and Side Lock. Swivel Lock: 4 position swivel lock. Connectors: Available with • Top Plates

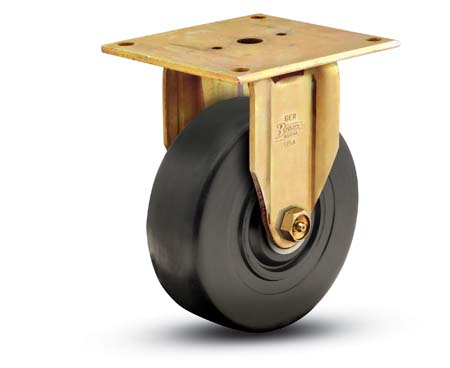

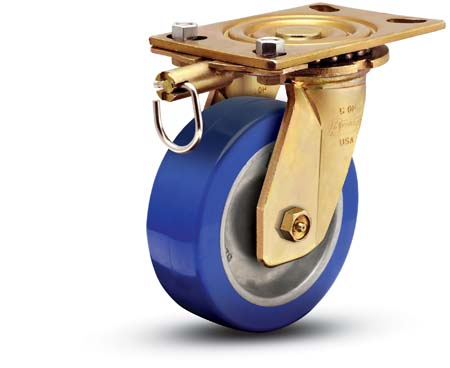

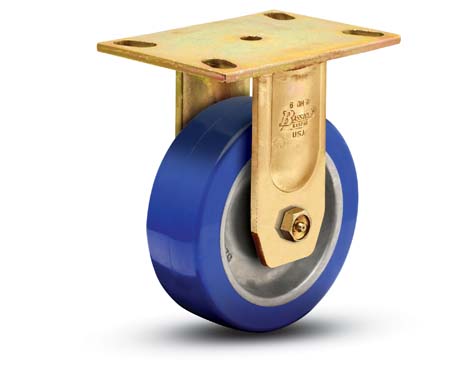

	*Bassick ES/ER Series*		*Bassick OS/OR Series*
	Features: • Drawn, single piece leg construction • Heat treated, dual ball bearing raceways • Yellow dichromate finish for added corrosion resistance Applications: • Towline • Fixture Dollies • Freight Terminal Trucks • Warehouse Trucks Options: • Brakes: Total Lock Connectors: Available with • Top Plates		Features: • Heavy, stamped leg construction • Heat treated, dual ball bearing raceways • Wraparound welded legs are located directly under the main support swivel bearings for added strength • Sealed upper and lower ball races • Yellow dichromate finish for added corrosion resistance Applications: • Power Towed Application • Terminal Trucks • High Abuse Applications Options: • Brakes: Swivel Lock: 4 position swivel lock. Connectors: Available with • Top Plates

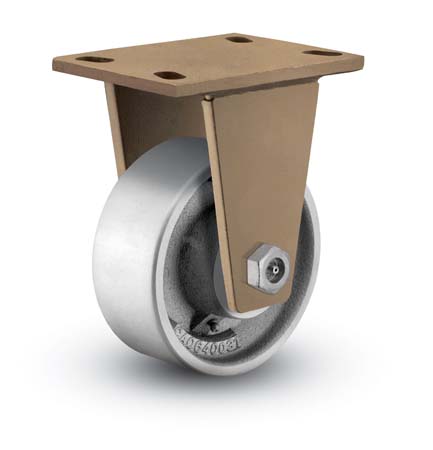

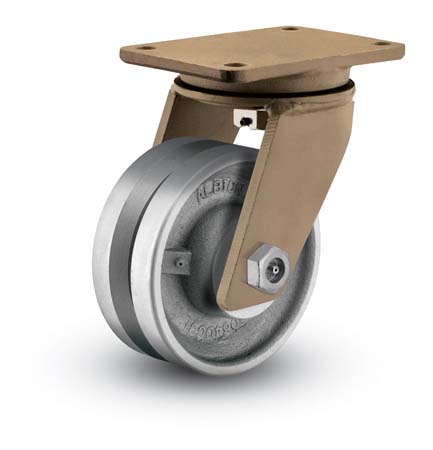

	*Bassick HS/HR Series*		*Bassick HA/HB Series*
	Features: • Heavy steel, dual ball raceway • Durable stampedwelded construction • 2-1/2" wide wheels for increased load handling • Heavy, staked kingpin • Sealed upper and lower ball races • Yellow dichromate finish for added corrosion resistance Applications: • Powered Towed Applications • High Abuse Applications • Rough floors Options: • Brakes: Swivel Lock: 4 position swivel lock. Connectors: Available with • Top Plates		Features: • Tapered roller bearing in swivel section • 1"Kingbolt, integrally forged into top plate • Legs fully welded inside and out for added strength and stability • Gold painted finish Applications: • Fixture Trucks • Heavy Engine Stands • Assembly Line Trucks Connectors: Available with • Top Plates

Return to top

Shepherd Caster Twin Wheel Casters

	*Pacer Hooded Die-cast Twin Wheel*		*Pilot Unhooded Die-cast Twin Wheel*
	Features: • Zinc die-cast body and hood • Concealed axle • Meets or exceeds ANSI/BIFMA standards for seating Applications: • Seating • Electronic Equipment • Store Fixtures • Office Equipment Options: Brakes: 50mm models only Finishes: Bright Chrome, Brass Plate, Flat Black, Satin Chrome, Windsor Antique Urethane Wheel: Connectors: Available with • Stemless • Threaded Stems (shown) • Top Plates • Grip Ring • Grip Neck		Features: • Zinc die-cast body and hood • Concealed axle • Meets or exceeds ANSI/BIFMA standards for seating Applications: • Seating • Electronic Equipment • Store Fixtures Options: Urethane Wheel Finishes: Flat Black Connectors: Available with • Stemless • Threaded Stems • Top Plates • Grip Ring (shown) • Grip Neck

	*Source II Nylon Hooded*		*Source II Nylon Unhooded*
	Features: • All nylon construction • Steel axle and fastening • Meets or exceeds ANSI/BIFMA standards for seating in 50mm and 60mm models Applications: • Furniture • Display Units • Medical Equipment • Utility Carts • Office Equipment Options: Brakes: Available for black models only. Finishes: Available in black and windsor antique metallic hood. Connectors: Available with • Threaded Stems • Top Plates • Grip Ring • Grip Neck		Features: • Nylon or urethane tread • Steel axle and fastening • Available separately as stem and body Applications: • Furniture • Store Fixtures • Medical Equipment • Office Equipment Options: Brakes Connectors: Available with • Stemless • Threaded Stems • Top Plates • Grip Ring • Grip Neck

	*Replacement Chair Hooded*		*Ultima II Large Twin*
	Features: • Constructed of injection-molded engineering grade nylon • Nylon tread for carpeting and urethane for hard floors Applications: • Seating • Medical Equipment Options: • 1-1/2" or 1-3/4" pivot boss sizes Connectors: Available with • Grip Ring		Features: • Contemporary design • Strong nylon construction • Rivet axle for positive wheel retention Applications: • Medical Equipment • Utility Carts • Furniture Options: Brakes Connectors: Available with • Threaded Stems • Top Plates • Grip Ring • Grip Neck

	*Softech Soft Tread Twin*
	Features: • Soft 70-75/A durometer tread constructed of high-tech thermoplastic elastomer • High load ratings • Quiet mobility Applications: • Electronic Equipment • Medical Equipment • Audio/Visual Equipment • Furniture Colors: Black or Grey Options: Brakes Connectors: Available with • Threaded Stems • Top Plates • Grip Ring • Grip Neck		Return to top

Shepherd Caster Ball Casters

	*Metal Tread Ball Casters*		*Soft Tread Ball Casters*
	Features: • Self-lubricating acetyl resin bearing • No exposed axle Applications: • Furniture • Store Fixtures • Medical Equipment • Office Equipment Options: • Brakes: 2-1/2" models only • Finishes: Bright Brass, Bright Chrome, Satin Chrome and Windsor Antique. • Tred-Gard®: Cover protects tread from scratches during manufacturing and shipping. Connectors: Available with • Stemless (shown at left) • Threaded Stems • Top Plates • Grip Ring • Grip Neck		Features: • Self-lubricating acetyl resin bearing • No exposed axle Applications: • Furniture • Store Fixtures • Medical Equipment • Office Equipment Options: • Brakes: 3" diameter models only. • Finishes: Bright Brass, Bright Chrome, Satin Chrome, Windsor Antique and Unfinished. • Locking Pin: Available on 3" non-brake unfinished models. • Tread Material: Rubber or Urethane Connectors: Available with • Stemless • Threaded Stems • Top Plates • Grip Ring • Grip Neck
		Return to top
