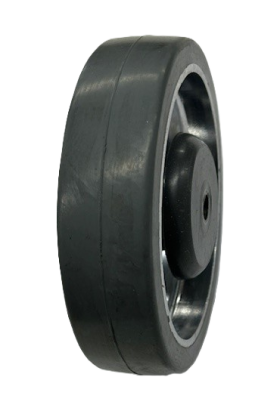

Wheel; 5" x 1-1/4"; ThermoPlastic Rubber Donut (Gray); Precision Ball Brng; 3/8" Bore; 1-9/16" Hub Length; 300#; Bearing Cover (88172)


Images shown are representations only. Refer to product descriptions for exact specifications. Please call if specific aspects of the appearance are required.

Wheel; 5" x 1-1/4"; ThermoPlastic Rubber Donut (Gray); Precision Ball Brng; 3/8" Bore; 1-9/16" Hub Length; 300#; Bearing Cover (88172)

As Low As $7.09

  • Shipping Weight: 0.35lbs
Volume Pricing - Call for higher quantities
1-7
$8.40
8-15
$7.69
16-29
$7.38
30+
$7.09
Qty :

Estimated shipping costs are available upon adding to cart.
Description

Wheel; 5" x 1-1/4"; ThermoPlastic Rubber Donut (Gray); Precision Ball Brng; 3/8" Bore; 1-9/16" Hub Length; 300#; Bearing Cover (Shepherd 009908)
When selecting a wheel, make sure to get the weight capacity needed along with the diameter, width, and axle bore. In some cases, the hub length is critical to a good fit. As with casters, the larger the wheel, the easier the push will be. Pay attention to hard vs soft wheels, propensity to flatten and marking vs non-marking.

Remember that larger diameter equates to ease-of-roll while wider width equates to higher weight capacity.

Thermoplastic Rubber (TPR) wheels are precision molded and mechanically locked to a durable polyolefin core to provide an economical wheel for many applications. They provide a smooth, cushioned ride and can overcome small debris and obstacles on the floor. They offer floor protection, are non-marking and non-conductive. These often have various brand names by various manufacturers and can be flat or crowned.

TPR are considered soft wheels which may experience flat-spotting even when loaded within the acceptable weight limits. Flat-spotting is more noticeable in warmer weather. The flat-spotting will roll-out and dissipate after a few minutes of rolling, depending on the size of the standing load and extent of the flat-spotting. This is a normal occurrence of these wheels and is not a product failure. If your application cannot tolerate this temporary condition, another material type may be preferable.

Specs

  • Wheel Diameter: 5"
  • Tread Width: 1-1/4"
  • Material: ThermoPlastic Rubber Donut (Gray)
  • Load Rating (Per Item): 300 pounds
  • Bearing: Prec Ball Brngs
  • Misc Options: Bearing Cover
  • Bore: 3/8"
  • Hub Length: 1-9/16"
  • Shipping Weight: 0.35 lbs.
  • Usually Ships in: 7-10 days (may be affected by quantity ordered)
